OBC and EV-Charging
Power semiconductors are essential in the operation of OBC and EV chargers, particularly for electric and hybrid vehicles. These components enable efficient power conversion and management, ensuring that energy is delivered to the vehicle's battery quickly and safely. By regulating the flow of electricity between the grid and the vehicle, power semiconductors reduce energy losses, optimize charging speeds, and enhance the overall reliability of charging systems. Additionally, they help to protect the battery from voltage fluctuations and overheating, contributing to longer battery life and a safer charging experience. As electric vehicle adoption grows, power semiconductors will continue to be a key enabler in advancing faster, more efficient, and smarter charging technologies.
-

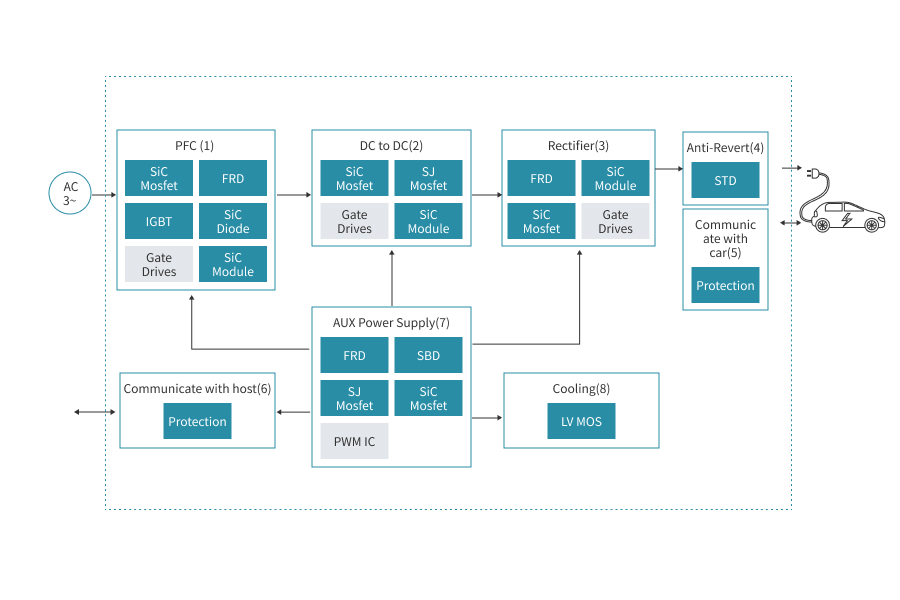

EV Charging
-
OBC
-
-
01 – PFC
-
IGBT
Function : Vienna Switch
-
FRD
Function : Vienna Diode
-
SiC Diode
Function : Vienna Diode
-
SiC MOS
Function : Two level Switch
-
Module
Function : Two level Switch
-
-
02 – DC to DC
-
SJ Mosfet
Function : LLC Switch
-
SiC Mosfet
Function : LLC Switch
-
Module
Function : LLC Switch
-
-
03 – Rectifier
-
FRD
Function : Rectifier Diode
-
SiC Mosfet
Function : Synchronous rectification
-
Module
Function : Synchronous rectification
-
-
04 – Anti-Revert
-
STD
Function : Standard Rectifier Diode
-
-
05 – Communicate with car
-
TVS/ESD
Function : Protection
-
-
06 – Communicate with host
-
TVS/ESD
Function : Protection
-
-
07 – AUX Power Supply
-
SJ Mosfet
Function : PWM Switch
-
SiC Mosfet
Function : PWM Switch
-
FRD
Function : Rectifier
-
SBD
Function : Rectifier
-
-
08 – Cooling
-
LV MOS
Function : Fan Control
-
-
-
-

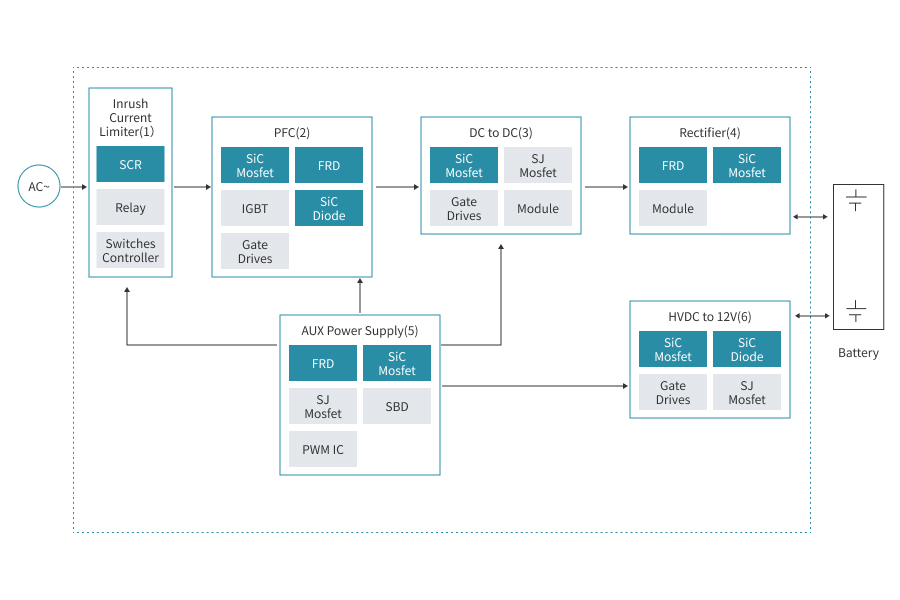

01 – Inrush Current Limiter
-
SCR
Function : Surge Current Protect
-
-
02 – PFC
-
SiC MOS
Function : Boost Switch
-
FRD
Function : Boost Diode
-
-
03 – DC to DC
-
SiC MOS
Function : LLC Switch
-
-
04 – Rectifier
-
FRD
Function : Rectifier Diode
-
SiC Mosfet
Function : Synchronous rectification
-
-
05 – AUX Power Supply
-
SiC MOS
Function : PWM Switch
-
FRD
Function : Rectifier Diode
-
-
06 – HVDC to 12V
-
SiC MOS
Function : Full Bridge Switch
-
SiC Diode
Function : Clamp Diode
-
-
