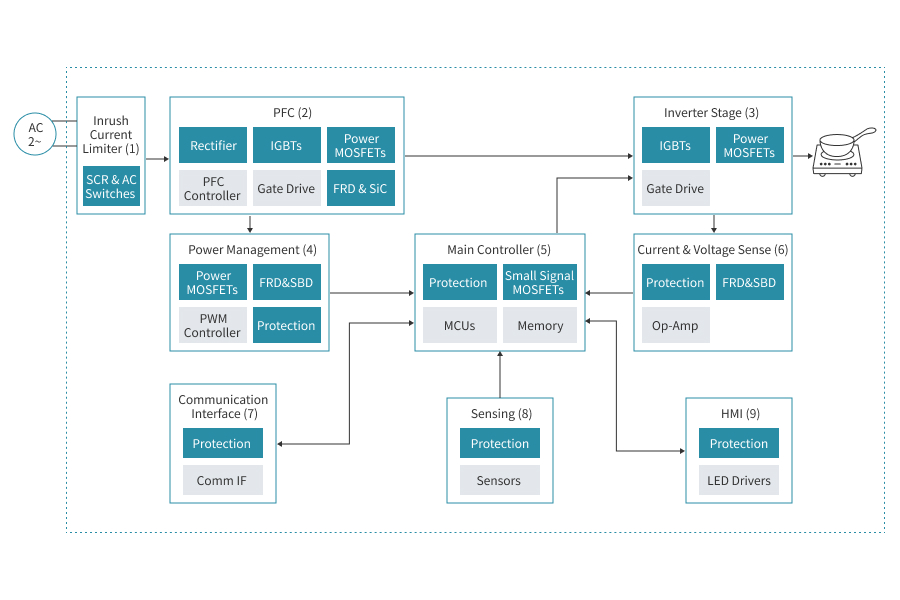

Induction Cooking
-
Induction Cooking
-
-
01 – Inrush current Limiter
-
Triac
Function : Bypass Switch
-
-
02 – PFC (Optional)
-
Standard Diodes
Function : Input Rectifier
-
FRD
Function : Rectifier
-
SiC
Function : Rectifier
-
IGBT
Function : Switches
-
MOSFET
Function : Switches
-
-
03 – Inverter
-
HB Inverter IGBT
Function : Switches
-
Single Switch Inverter IGBT
Function : Switches
-
-
04 – Power Management
-
Power MOSFET
Function : Switches
Remarks : Buck or Flyback
-
FRD
Function : Rectifiers
Remarks : Buck or Flyback
-
SBD
Function : Rectifiers
Remarks : Buck or Flyback
-
TVS
Function : Protection
Remarks : Buck or Flyback
-
-
05 – Main Controller
-
Smal Signal MOSFET
Function : Switches
-
ESD
Function : Protection
-
-
06 – Current & Voltage Sense
-
ESD
Function : Protection
-
TVS
Function : Protection
-
FRD
Function : Diodes
-
-
07 – Communication Interface
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
08 – Sensing
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
09 – HMI
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
