Air Conditioner
Mondern air conditioning systems utilize power semiconductors to enable intelligent control of inverter-driven compressors, variable fan speeds, and precise temperature regulation. These high-efficiency components optimize energy consumption while maintaining consistent cooling performance, reducing operational noise, and extending system lifespan. By dynamically adjusting power delivery, semiconductor-equipped AC units achieve superior climate control with up to 30% greater energy efficiency compared to conventional models, supporting both environmental sustainability and cost savings.
-

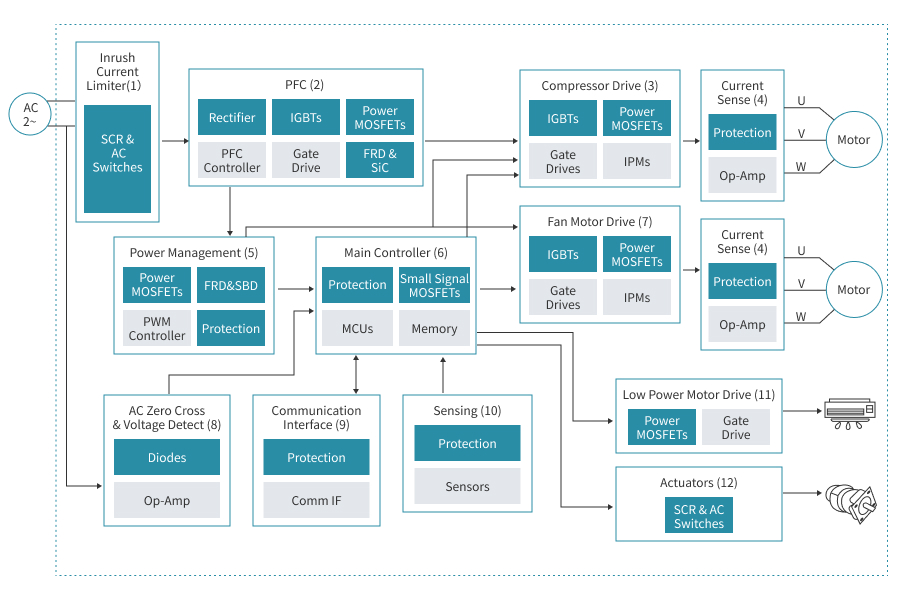

Air Conditioner
-
-
01 – Inrush Current Limiter
-
SCR
Function : Controlled Rectifier
-
Triac
Function : Bypass Switch
-
-
02 – PFC
-
Standard Rectifiers
Function : Input Rectifier
-
FRD
Function : Rectifier
-
SiC Diode
Function : Rectifier
-
IGBT
Function : Switches
-
SJ-MOSFET
Function : Switches
-
-
03 – Compressor Drive
-
IGBT
Function : Switches
-
Power MOSFET
Function : Switches
-
-
04 – Current Sense
-
ESD, TVS Diodes
Function : Protection
-
-
05 – Power Management
-
Power MOSFET
Function : Switches
-
FRD
Function : Rectifier
-
SBD
Function : Rectifier
-
TVS
Function : Protection
-
-
06 – Main Controller
-
Smal Signal MOSFET
Function : Switches
-
ESD
Function : Protection
-
-
07 – Fan Motor Drive
-
SJ-MOSFET
Function : Switches
Remarks : 600mOhm-2Ohm 650V MOSFET
-
-
08 – AC Zero Cross
-
FRD
Function : Rectifier
Remarks : 1A 600V FRD Diode
-
-
09 – Comm Interface
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
10 – Sensing
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
11 – Low Power Motor Drive
-
SJ-MOSFET
Function : Switches
Remarks : Very Low power Brushed or Step Motor
-
-
12 – Actuators
-
Triac and Protected AC Switches
Function : IM Motor Drive – Low Power
-
-
