Coffee Machine
Coffee machines utilize advanced power semiconductors to enhance efficiency, precision, and energy control. These semiconductors regulate heating elements, pump motors, and control systems, ensuring optimal temperature and pressure for the perfect brew. By integrating power electronics, coffee machines achieve faster heating, reduced energy consumption, and improved reliability—delivering a high-performance brewing experience.
-

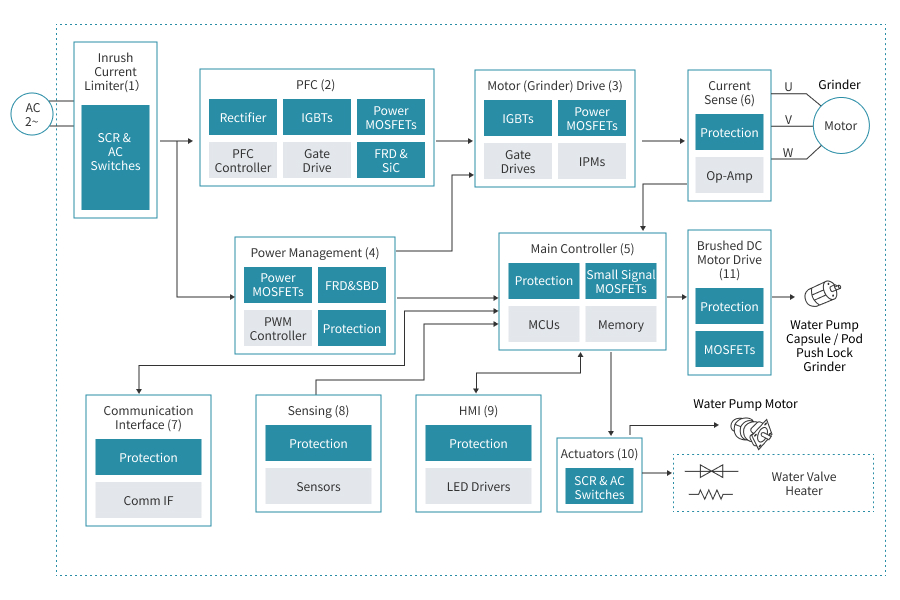

Coffee Machine
-
-
01 – Inrush current Limiter
-
Triac
Function : Bypass Switch
-
-
02 – PFC (Optional)
-
Standard Rectifiers
Function : Input Rectifier
Remarks : Low Power PFC < 400W
-
FRD
Function : Rectifiers
Remarks : Low Power PFC < 400W
-
SiC
Function : Rectifiers
Remarks : Low Power PFC < 400W
-
IGBT
Function : Switches
Remarks : Low Power PFC < 400W
-
MOSFET
Function : Switches
Remarks : Low Power PFC < 400W
-
-
03 – Motor Drive
-
IGBT
Function : Switches
Remarks : P<400W
-
MOSFET
Function : Switches
Remarks : P<400W
-
-
04 – Power Management
-
Power MOSFET
Function : Switches
Remarks : Buck or Flyback, P<10W
-
FRD
Function : Rectifiers
-
SBD
Function : Rectifiers
-
TVS
Function : Protection
-
-
05 – Main Controller
-
Smal Signal MOSFET
Function : Switches
Remarks : SOT-23-6 Package, SC and Temp Protection
-
ESD
Function : Protection
-
-
06 – Current & Voltage Sense
-
ESD
Function : Protection
-
TVS
Function : Protection
-
FRD
Function : Rectifier
-
-
07 – Comm Interface
-
ESD
Function : Protection
Remarks : ESD Protection of Comm Lines
-
TVS
Function : Protection
Remarks : TVS Protection of Comm Lines
-
-
08 – Sensing
-
ESD
Function : Protection
Remarks : ESD Protection
-
TVS
Function : Protection
Remarks : TVS Protection
-
-
09 – HMI
-
ESD
Function : Protection
Remarks : ESD Protection
-
TVS
Function : Protection
Remarks : TVS Protection
-
-
10 – Actuators
-
Triac
Function : Heater
-
Triac
Function : Water Pump
-
AC Switches and Triacs
Function : Valve Drives
-
-
11 – Brushed DC Motor
-
MV MOSFETs
Function : Switches
Remarks : H-Bridge
-
TVS
Function : Protection
-
-
