Pumps utilize power semiconductors for intelligent motor control, enabling variable-speed operation, energy savings (up to 50%), and dry-run protection. These components optimize performance in agricultural, industrial, and domestic applications while reducing power consumption and maintenance needs.
-
Pump
-

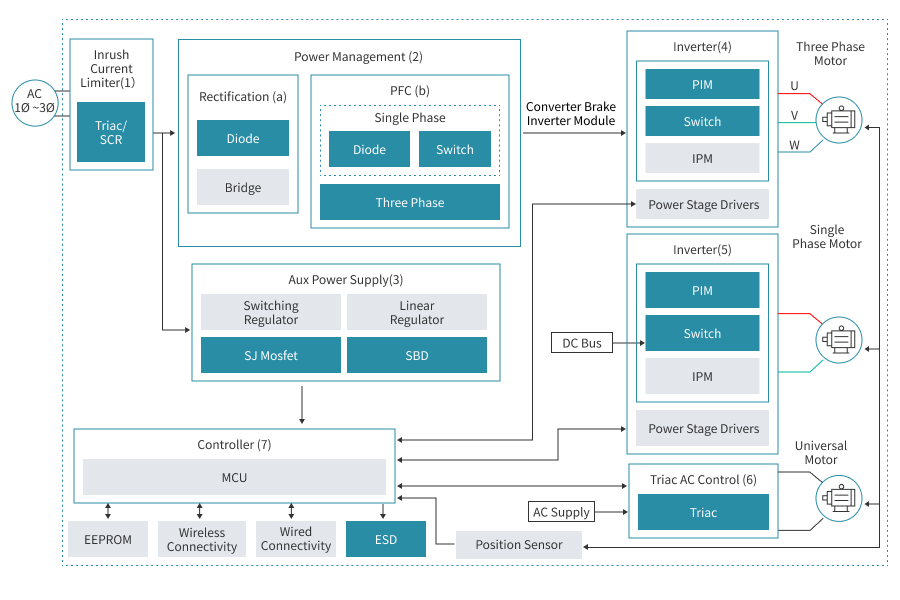

PFC ( Three Phase I/P)
-
-
01 – EMI Filters &Protection
-
SCR
Function : Bypass Switches
Remarks : Follow design requirement
-
-
02 – Power Management
-
Diode
Function : Rectification (a)
-
Bridge Rectifier
Function : Rectification (a)
Remarks : Need 15~50A /1600V Bridge Rectifier;3GBJ3516
-
FRD
Function : PFC (b)- Single Phase
-
SiC Diode
Function : PFC (b)- Single Phase
-
IGBT
Function : PFC (b)- Single Phase
-
PFC (b)
Function : PFC (b)- Three Phase
Remarks : Details in next slide
-
-
03 – Aux Power Supply
-
N/A
Function : Switching Regulator
-
N/A
Function : Linear Regulator
-
SJ MOSFET
Function : Flyback
Remarks : 800V~1400V MOS
-
SBD
Function : Output
Remarks : 40~60V SBD; Smaller package
-
-
04 – Inverter(Three Phase)
-
PIM –CIB
Function : Inverter
-
PIM- 6 Pack
Function : Inverter
-
Switch -IGBT
Function : Inverter
-
-
05 – Inverter (Single Phase)
-
Switch-IGBT
Function : Inverter
-
PIM-6 Pack
Function : Inverter
-
-
06 – Triac Control
-
Switch-Triac
Function : Triac
-
-
-
-

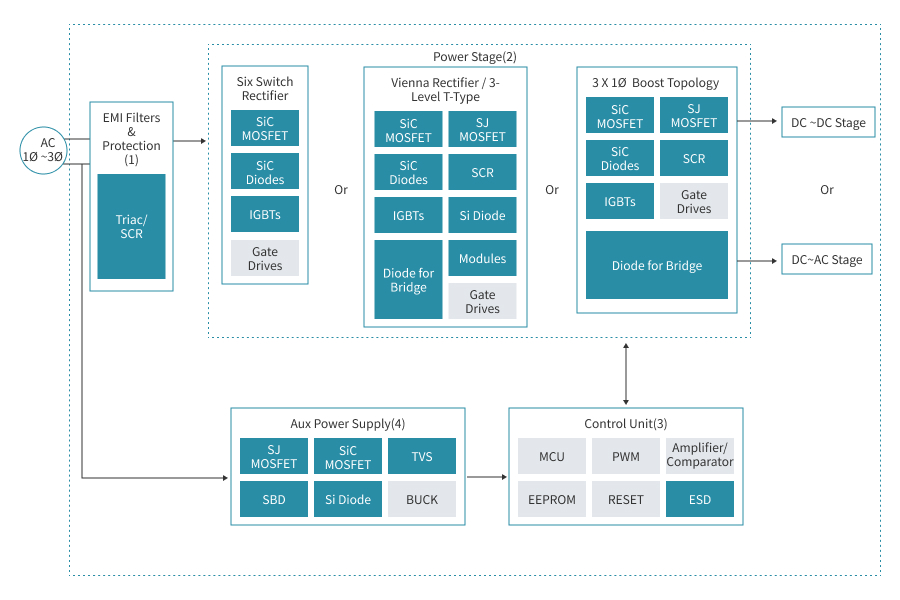

01 – EMI Filters &Protection
-
Triac / SCR
Function : Bypass Switches
-
-
02 – Power Stages (PFC)
-
SiC MOSFET
Function : Six Switch Rectifier
Remarks : High Itsm /Fast Switching Parts
-
SiC Diode
Function : Six Switch Rectifier
Remarks : High Itsm /Fast Switching Parts
-
IGBT
Function : Six Switch Rectifier
Remarks : High Itsm /Fast Switching Parts
-
SiC MOSFET (650V)
Function : Vienna Rectifier / 3-Level T-Type
-
SiC MOSFET (1200V)
Function : Vienna Rectifier / 3-Level T-Type
-
IGBT - (650V)
Function : Vienna Rectifier / 3-Level T-Type
Remarks : Fast Switching
-
IGBT - (1200V)
Function : Vienna Rectifier / 3-Level T-Type
Remarks : Fast Switching
-
Thyristors
Function : Vienna Rectifier / 3-Level T-Type
-
SJ MOSFET
Function : Vienna Rectifier / 3-Level T-Type
-
Power Modules
Function : Vienna Rectifier / 3-Level T-Type
-
Diode
Function : Vienna Rectifier / 3-Level T-Type
-
FRD
Function : Vienna Rectifier / 3-Level T-Type
-
SiC Diode (650V)
Function : Vienna Rectifier / 3-Level T-Type
-
SiC Diode (1200V)
Function : Vienna Rectifier / 3-Level T-Type
-
SiC MOSFET(1200V)
Function : Boost Topology
-
IGBT(1200V)
Function : Boost Topology
-
Diode
Function : Boost Topology
-
SiC Diode
Function : Boost Topology
-
SJ MOSFET
Function : Boost Topology
-
-
03 – Control Unit
-
ESD
Function : Protection
Remarks : 4/5 Line ESD Protection
-
-
04 – Aux Power Supply
-
Schottky Diode
Function : Switching
Remarks : 3A~6A/60V, SMB
-
Ultrafast Diode
Function : Freewheel /Snubber
Remarks : 1~5A/1000V~1200V,SMC
-
TVS
Function : Protection
-
SJ MOS
Function : Flyback
Remarks : Controller with Integrated Switch
-
SiC MOSFET
Function : Flyback
-
-
