BT155W-1200T

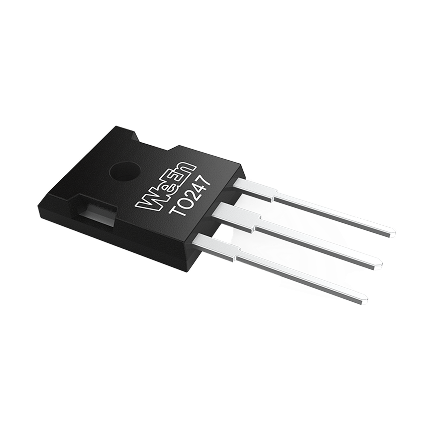

Planar passivated Silicon Controlled Rectifier in a TO247  plastic package intended for use in applications requiring very high inrush current capability and high thermal cycling performance.

Planar passivated Silicon Controlled Rectifier in a TO247  plastic package intended for use in applications requiring very high inrush current capability and high thermal cycling performance.

Parametric

  • Package

    TO247

  • VRRM/VDRM(V)

    1200

  • IT(AV)(A)

    50

  • IT(RMS)(A)

    79

  • ITSM(A)

    650

  • IGT(max)(mA)

    50

  • dVD/dt(V/us)

    1500

  • Tj(max)(℃)

    150

  • Qualification

    Industrial

  • download.png
  • download.png

Product Order & Quality, Chemical content information

Type number 12NC Orderable part number Package Packing Product status RoHS / RHF Leadfree conversion date MSL (lead free) Chemical content RoHS
BT155W-1200T 9340 698 68127 BT155W-1200TQ TO247 HORIZONTAL, RAIL PACK Volume production RoHS compliant, Pb-Free lead plating, RHF D Always Pb-free NA Chemical content BT155W-1200T__rohs.pdf
