洗衣机/烘干机
现代洗衣机和烘干机采用功率半导体技术,精准调控电机转速、加热元件及水泵运行,在确保高能效运作的同时实现最佳性能表现。这些核心元件可加快洗涤周期、降低运行噪音并支持智能功能——在显著降低能耗的同时,提供卓越的清洁与烘干效果。
-

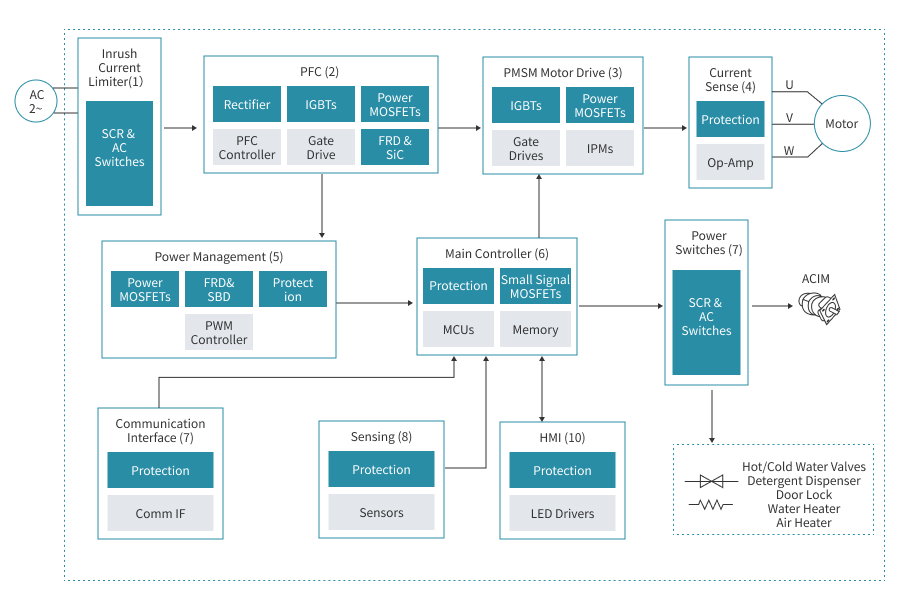

洗衣机/烘干机
-
-
01 – Inrush Current Limiter
-
Triac
Function : Bypass Switch
-
-
02 – PFC (Optional)
-
Standard Rectifier
Function : Input Rectifier
-
FRD
Function : Rectifiers
-
SiC
Function : Rectifiers
-
IGBT
Function : Switches
-
MOSFET
Function : Switches
-
-
03 – BLDC Motor Drive
-
IGBTs
Function : Switches
Remarks : P>500W
-
Power MOS
Function : Switches
Remarks : P<100W
-
-
04 – Current Sense
-
ESD, TVS Diodes
-
-
05 – Power Management
-
Power MOSFET
Function : Switches
-
FRD
Function : Rectifier
-
TVS
Function : Protection
-
-
06 – Main Controller
-
Smal Signal MOSFET
Function : Switches
-
ESD
Function : Protection
-
-
07 – Power Switches
-
Triac, AC Switches
Function : Valves
-
Triac
Function : Heater
-
Triac
Function : IM Motor Control
-
-
08 – Comm I/F
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
09 – Sensing
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
10 – HMI
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
