空调
现代空调系统采用功率半导体技术,实现对变频压缩机、无级变速风扇及精准温控的智能化管理。这些高效元器件在保证制冷性能稳定的同时,可优化能耗、降低运行噪音并延长系统寿命。通过动态调节电力输出,配备半导体的空调机组相比传统机型能效提升高达30%,在实现卓越环境调控的同时,兼具环保效益与成本节约优势。
-
空调
-
-

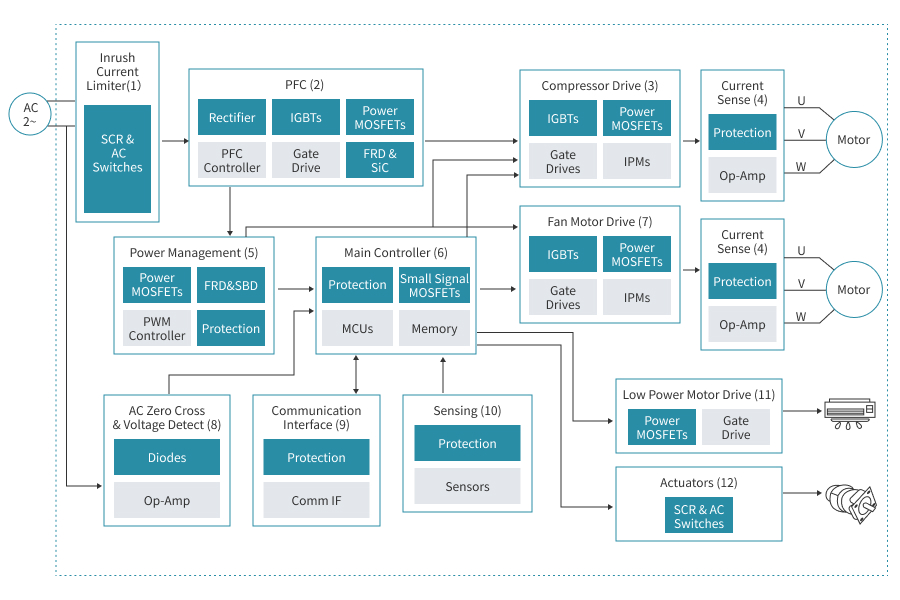

01 – Inrush Current Limiter
-
SCR
Function : Controlled Rectifier
-
Triac
Function : Bypass Switch
-
-
02 – PFC
-
Standard Rectifiers
Function : Input Rectifier
-
FRD
Function : Rectifier
-
SiC Diode
Function : Rectifier
-
IGBT
Function : Switches
-
SJ-MOSFET
Function : Switches
-
-
03 – Compressor Drive
-
IGBT
Function : Switches
-
Power MOSFET
Function : Switches
-
-
04 – Current Sense
-
ESD, TVS Diodes
Function : Protection
-
-
05 – Power Management
-
Power MOSFET
Function : Switches
-
FRD
Function : Rectifier
-
SBD
Function : Rectifier
-
TVS
Function : Protection
-
-
06 – Main Controller
-
Smal Signal MOSFET
Function : Switches
-
ESD
Function : Protection
-
-
07 – Fan Motor Drive
-
SJ-MOSFET
Function : Switches
Remarks : 600mOhm-2Ohm 650V MOSFET
-
-
08 – AC Zero Cross
-
FRD
Function : Rectifier
Remarks : 1A 600V FRD Diode
-
-
09 – Comm Interface
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
10 – Sensing
-
ESD
Function : Protection
-
TVS
Function : Protection
-
-
11 – Low Power Motor Drive
-
SJ-MOSFET
Function : Switches
Remarks : Very Low power Brushed or Step Motor
-
-
12 – Actuators
-
Triac and Protected AC Switches
Function : IM Motor Drive – Low Power
-
-
